HEAD

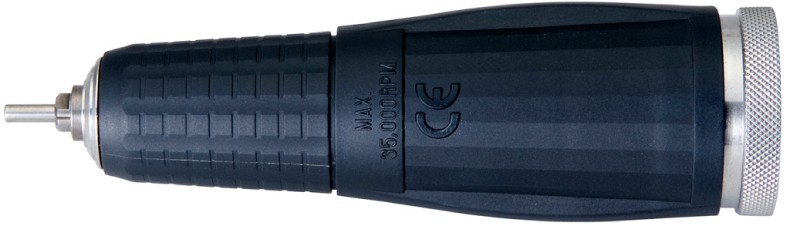

Standard Head UT01

Feature Standard type rotary head for all kinds of works.

Specifications

Allowable speed 35000 rpm Mounted collet Φ2.34ｍｍ(KP-036B) Included collet Φ3.0ｍｍ（KP-032B) Optional collet Φ3.175ｍｍ（KP-033B) Dimensions Max. Φ27.2ｍｍ　ｘ　88ｍｍ Weight 115ｇ

Accessories Chuck joint wrench Chuck wrench

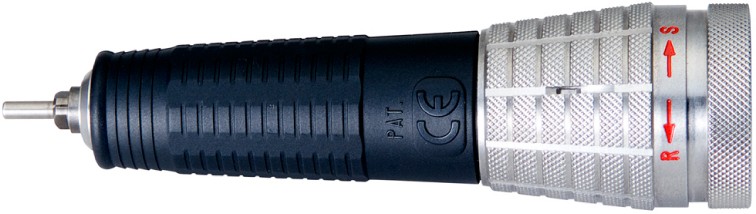

Slender Head UT02

Feature Light weight and comfortable to use. Highest allowable motor speed.

Specifications

Allowable speed 55000 rpm Mounted collet Φ2.34ｍｍ(KP-036B) Included collet Φ3.0ｍｍ（KP-032B) Optional collet Φ3.175ｍｍ（KP-033B) Dimensions Max. Φ25.8ｍｍ　ｘ　86.5ｍｍ Weight 100ｇ

Accessories Chuck joint wrench Chuck wrench

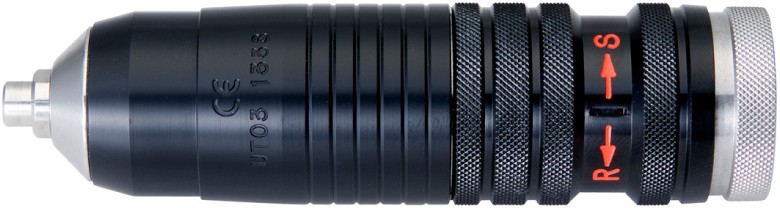

Power Rotary Head UT03

Feature For heavy works. Φ2.34ｍｍ～6.35ｍｍ collets are mountable.Possible to use thick shank tools.

Specifications

Allowable speed 30000 rpm Mounted collet Φ6.0ｍｍ(KP-060A) Included collet Φ3.0ｍｍ（KP-062A) Optional collet Φ2.34ｍｍ（KP-061A) Φ3.175ｍｍ（KP-063A) Φ6.35ｍｍ（KP-064A) Dimensions Max. Φ26.4ｍｍ　ｘ　95ｍｍ Weight 150ｇ

Accessories Chuck joint wrench Chuck wrench

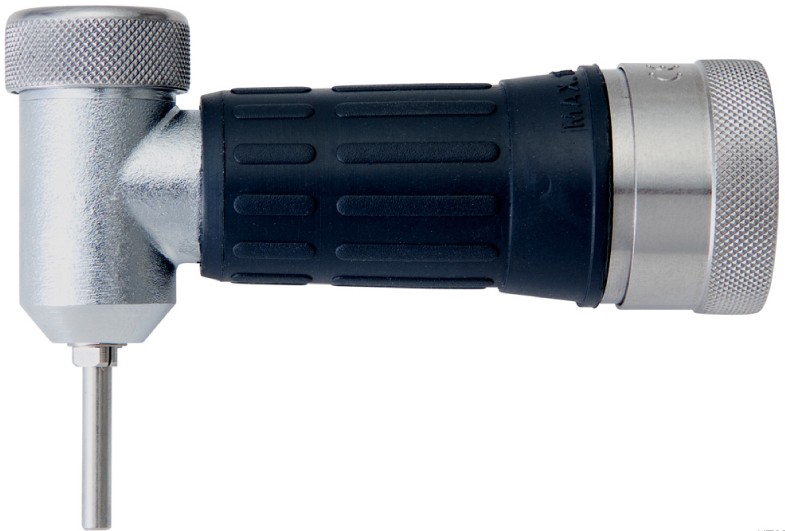

Angle Head 90°　UT05

Feature Small type angle head. Suitable for polishing with diamond disc and etc…

Specifications

Allowable speed 15000 rpm Mounted collet Φ3.0ｍｍ(KP-022) Included collet Φ2.34ｍｍ（KP-021) Optional collet Φ3.175ｍｍ（KP-025) Dimensions Max Φ25.4ｍｍ　ｘ　95ｍｍ　Hight of the angle part:33mm Weight 100ｇ

Accessories Hexagon key wrench Chuck wrench

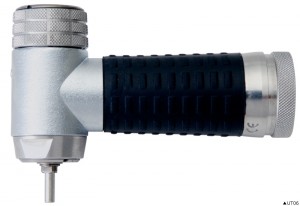

Power Angle Head　90°　UT06

Feature Power type angel head. Suitable for polishing with diamond disc and etc…

Specifications

Allowable speed 15000 rpm Mounted collet Φ3.0ｍｍ(KP-032B) Included collet Φ2.34ｍｍ（KP-036B) Optional collet Φ3.175ｍｍ（KP-033B) Dimensions Max Φ25.4ｍｍ　ｘ　80.5ｍｍ Height of angle part：45.5mm Weight 200ｇ

Accessories Chuck wrench

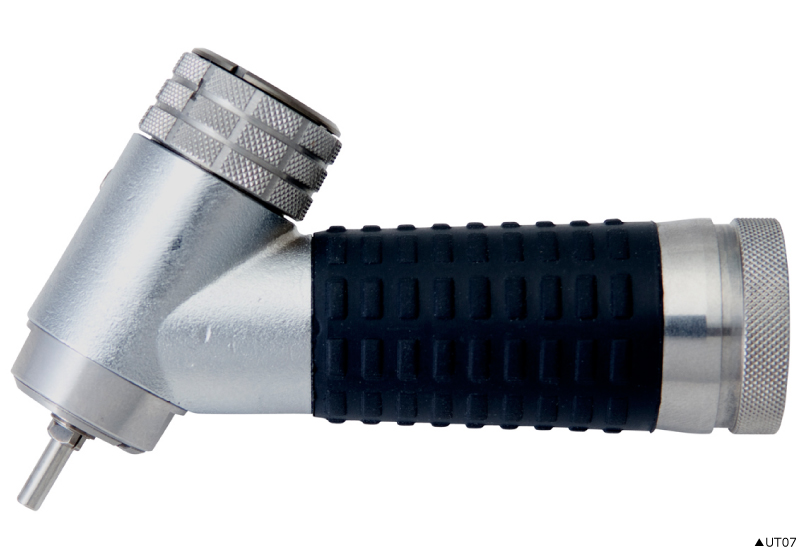

Power angle head　120°　UT07

Feature Power type angle head. Suitable for polishing with diamond disc and etc…

Specifications

Allowable speed 15000 rpm Mounted collet Φ3.0ｍｍ(KP-032B) Included collet Φ2.34ｍｍ（KP-036B) Optional collet Φ3.175ｍｍ（KP-033B) Dimensions Max Φ25.4ｍｍ　ｘ　80.5ｍｍ Height of angle part：47.5mm Weight 210ｇ

Accessories Chuck wrench

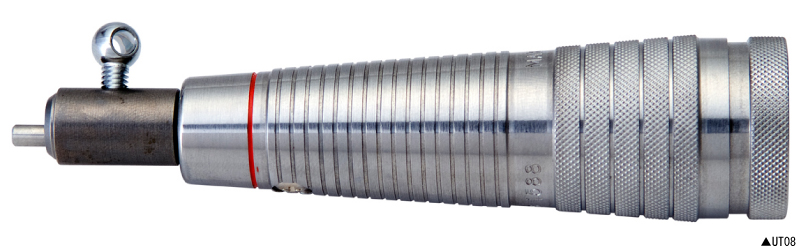

Swing Head　UT08

Feature Swing type head. Suitable for polishing Tools which shank size Φ2～4.7mm is possible to use

Specifications

Allowable speed 8000 rpm Dimensions Φ26.0ｍｍ　ｘ　102ｍｍ Weight 140ｇ

Accessories Hexagon key wrench Bur wrench

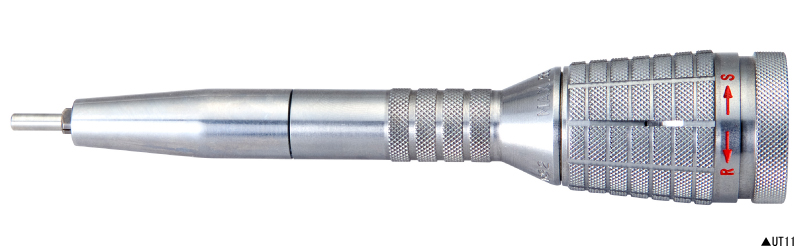

Long Slender Head UT11

Feature Long and slender type head. Long slender head is useful when polishing deep inside.

Specification

Allowable speed 55000rpm Mounted collet Φ3.0mm(KP-032B) Included collet Φ2.34mm(KP-036B) optional collet Φ3.175mm(KP-033B) Dimensions Max Φ25.8ｍｍ　ｘ　121ｍｍ Weight 120ｇ

Accessories Chuck joint wrench Chuck wrench

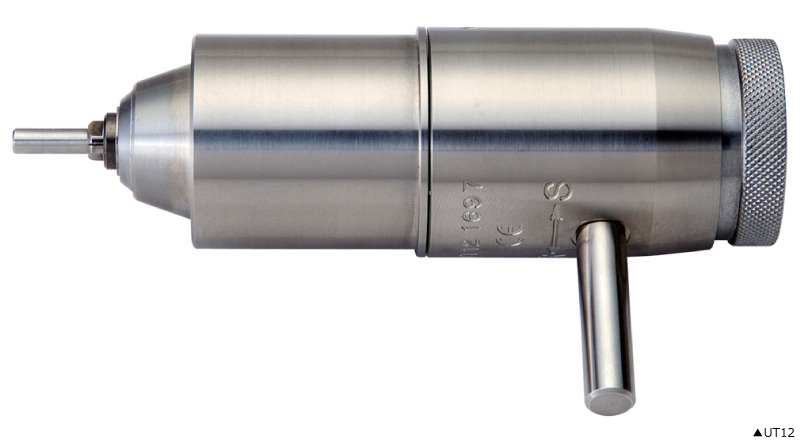

Standard Clamp Head UT12

Feature Clamp Head is for automatic desktop type robot. For cutting and engraving.

Specifications

Allowable speed 30000 rpm Mounted collet Φ3.175mm(KP-033B) Optional collet Φ2.34mm(KP-036B) Φ3.0mm（KP-032B) Dimensions Max Φ27.8ｍｍ　ｘ　83ｍｍ　Clamp part:Φ26mm x 26mm Weight 235ｇ

Accessories Chuck joint wrench Chuck wrench
