G7 series

UC900

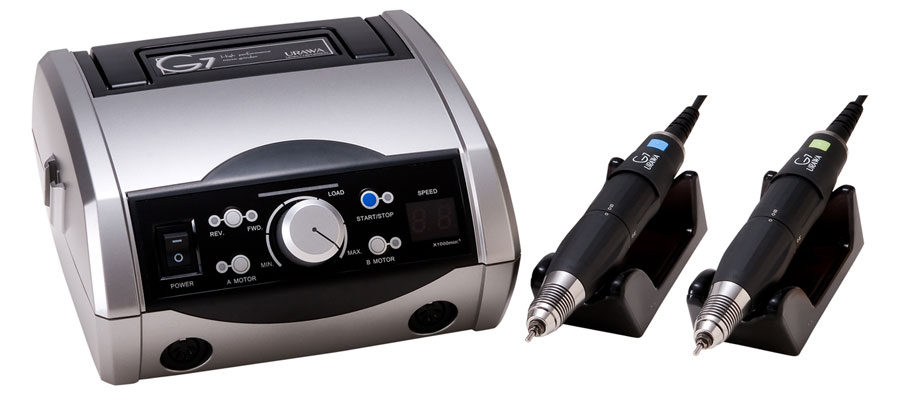

UC900/UG42A/UG43A
G7 Controller

High performance micro computer is mounted for maximum performance.

G7 Handpiece



Micro computer control
Smooth and comfortable operation by built in micro computer.
This will control best torque for each motor automatically.

Auto cruise foot pedal
It is possible to fix the rotation speed when using foot pedal.
No more necessary to keep stepping foot pedal.

Self diagnostic function
G7 controller checks condition of motor and controller for safety reason.
When heating up, fan inside the controller start automatically to reduce the temperature.

Load indicator
8 steps load indicator allows operator to see the condition clearly.
For longer life time, it will be cautioned for overwork.

Digital rotation display
2 digit display is for easy adjustment of rotation speed.
Appropriate rotation speed for each tool brings out the best performance.

Error code
When heating up, overload and defective of motor cord, error code is displayed for easy trouble shooting.

Operation volume control
It sounds beeping when pushing button, and also when overworks for cautions.
It is possible to adjust sound volume as vol.3, vol.2, vol.1 and none.

Mode selection
Automatically find motor on A or B.
It is also possible to use foot pedal only connecting to controller.

Convenient accessories
Motor hanger for keeping motor handpiece, and carrying handle is equipped on controller for easy carrying.

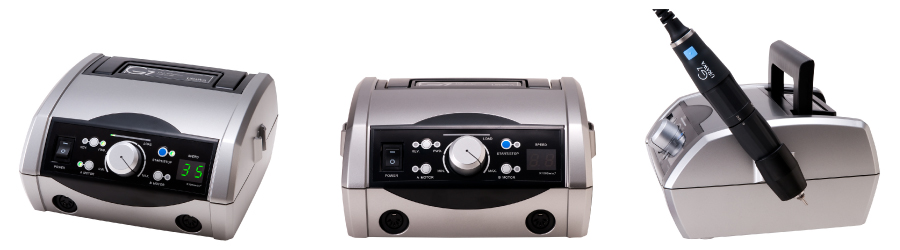

G7 Controller
Dimensions:W200mm x D178mm x H98mm
Weight:2.3kgG7 Motor Handpiece

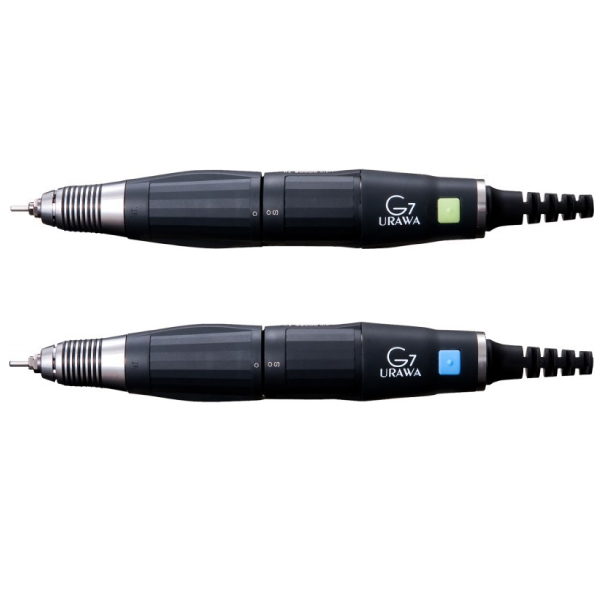

UG42A, UG43A

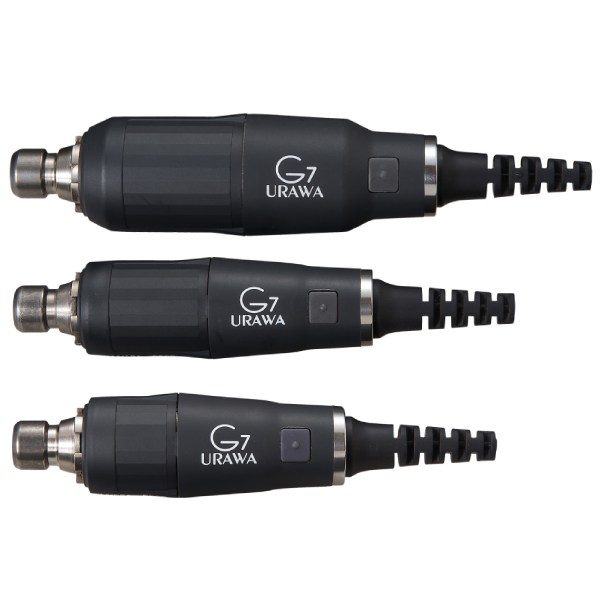

UM05A, UM1#A, UM2#A

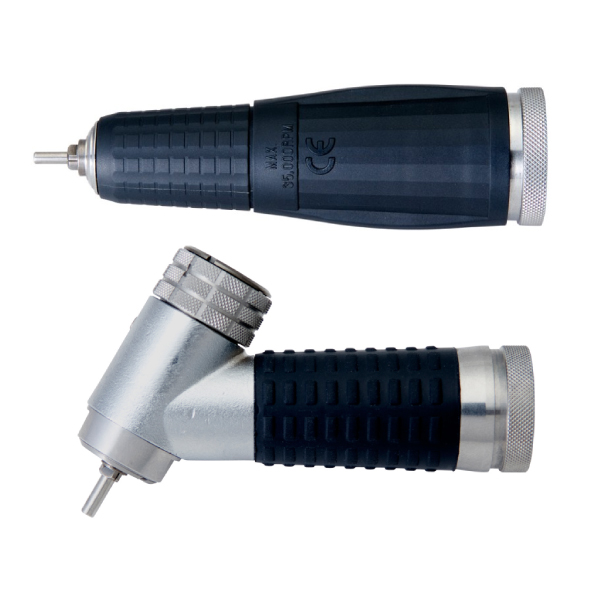

HEAD
UA12A, UA13A, UA14A
BS33
RE35, RE55

G7 Accessories
AC cord
Motor Hanger
Fuse
Option
Foot pedal (VC90)
VC60
