Brushless spindle motor unit

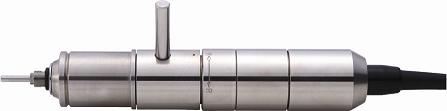

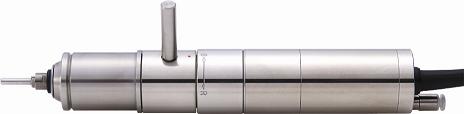

Spindle motor Air supply type BA14 Spindle motor Self cooling type BM14
BA14 BM14
Feature
・For small desktop robot. Ideal for Cutting and engraving
・Easy tool changing. Only turning lever on the spindle motor.
・Using ceramic ball bearing for better accuracy.
・BA14： Labyrinth seal and Airpurge prevents dusts.
・BM14： Labyrinth seal prevents dusts.
・BA14： Air cooling system allows even longer operation.
・BM14： Self cooling fan allows long time operation
Specification

Model Max RPM
(rpm）		 Supplied air pressure
（ＭＰa）		 Weight（g） Length of motor cord Dimensions（mm）
Lnegth Max diameter Clamp part Mounted collet
BA14 40,000 0.1～0.3 580 2m 174 30 26.8 3.175mm
BM14 ─ 540 2m 161
Accessories
Wrench 2pcs



Controller for spindle motor BP830


68_bp830_1
Front panel		 68_bp830_2
Rear panel
Feature
・Digital display for rotation speed of spindle motor.
・10 steps load indicator for comfortable operation.
・Start/Stop and seed control by external.
・When pressure goes down, it stops automatically for safety.
Specification

Model Input Dimension Weight Air pressure
BP830 AC100V　50/60Hz W260　x　D206　ｘ　H68mm 1.7Kg 0.1～0.3Mpa
Accessory
Plug adapter
