UP500/UG33/VC60 - URAWA Corporation

UP500/UG33/VC60

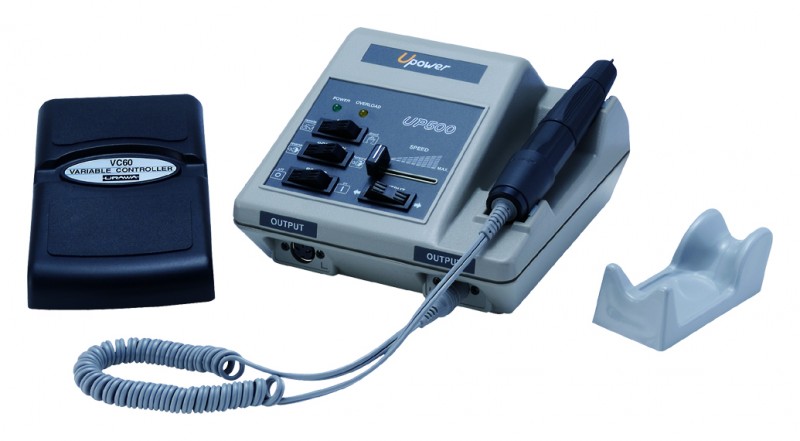

up500setUP500/UG33/VC60 is specially desighned for dental laboratory application. This micro motor handpiece is equipped with reinforced dust proof mechanism, so that it provides real power and greater accuracy in laboratory workings.



・Easy to adjust rotation speed.
・Automatic feedback circuit that ensures constant revolutions under a variety of working conditions.
・An electric circuit breaker that will temporarily stop the current in the event of an excessive load being applied to the handpiece.
・Possible to use in clockwise and counter clockwise direction for motor handpiece.。

UP500 Controller
Input : UP501 AC120V 50/60 Hz, UP503 AC230V 50Hz 30VA
Output : DC3-30V 0.4A
Weight : 2.4 kg
Size : W170 × D195 × H105mm


UG33 Motor Handpiece
Speed :MAX35,000rpm
Size : Diameter 28.8mm × L162mm
Weight : 190g (not including motor cord)

UP500 Accessories
Motor Stand (KP91-108)

UG33 Accessories
Chuck Wrench (KP-615A)
Screw Driver (NO45-C)
Spare Carbon Brushes (PKE-570F)
