UC550 series - URAWA Corporation

UC550 series

UC550





Handpiece

Feature

  • Possible to use ultrasonic handpiece and motor handpiece(Not same time).
  • Automatic feed system is incorporated to adjust the frequency depending on the tool being used.
  • 4 stages safety circuit are built in to preclude the probability of over-heating or overloading in both controller and handpiece.
  • Possible to use in clockwise and counter clockwise direction for motor handpiece.

Specifications

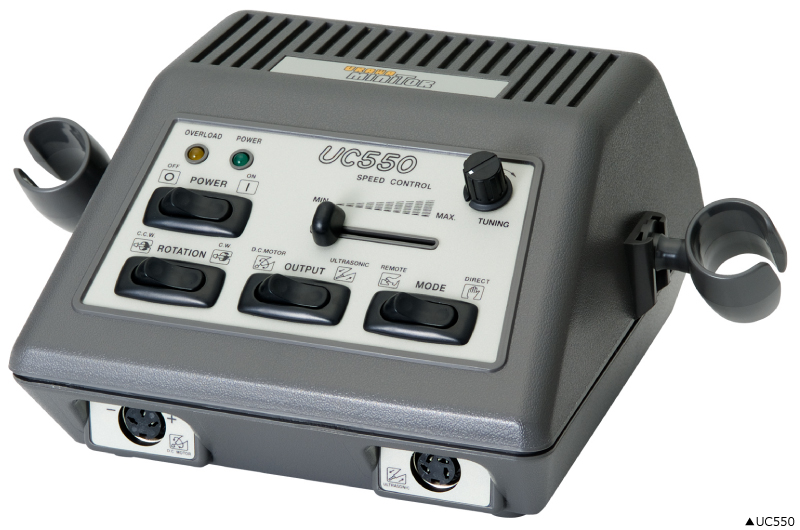

■UC550 Controller
Input :AC100V 50/60Hz 30VA
Output:Ultrasonic/AC6~60V 22.6kHz 0.3A Motor handpiece/DC3~30V 0.3A
Dimensions:W170 x H110 x D195mm
Weight:2.6kg

■Motor Handpiece

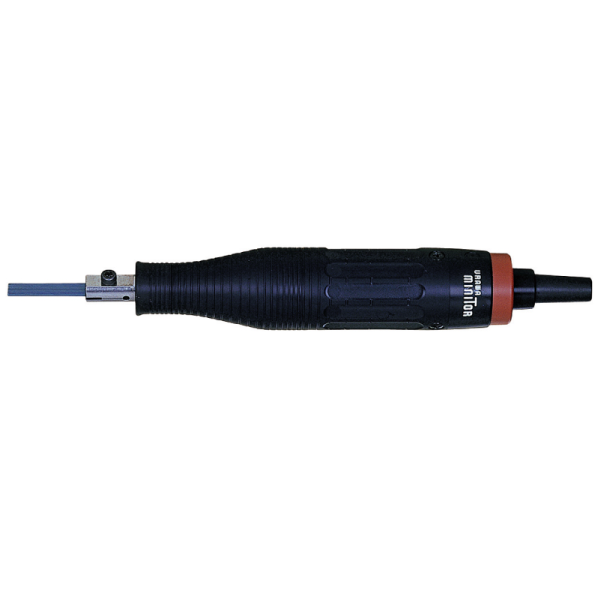

US55 (Ultrasonic Handpiece)
UM20, UM21, UM23
HEAD
BS33
RE35, RE55

Accessory
Handpiece holder 2pcs
