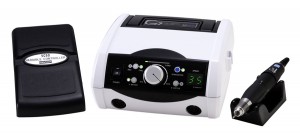

G7-SET

UP900 Controller
Micro computer control
Smooth and comfortable operation by built in micro computer.
This will control best torque for each motor automatically.

Auto cruise foot pedal
It is possible to fix the rotation speed when using foot pedal.
No more necessary to keep stepping foot pedal.

Self diagnostic function
G7 controller checks condition of motor and controller for safety reason.
When heating up, fan inside the controller start automatically to reduce the temperature.

Load indicator
8 steps load indicator allows operator to see the condition clearly.
For longer life time, it will be cautioned for overwork.

Digital rotation display
2 digit display is for easy adjustment of rotation speed.
Appropriate rotation speed for each tool brings out the best performance.

Error code
When heating up, overload and defective of motor cord, error code is displayed for easy trouble shooting.

For old type motor cord
It is possible to connect old type motor to this new controller.
Rotation speed and error code are not going to be displayed while using old type motor.

Operation volume control
It sounds beeping when pushing button, and also when overworks for cautions.
It is possible to adjust sound volume as vol.3, vol.2, vol.1 and none.

Mode selection
Automatically find motor on A or B.
It is also possible to use foot pedal only connecting to controller.

Convenient accessories
Motor hanger for keeping motor handpiece, and carrying handle is equipped on controller for easy carrying.

UG43A Motor handpiece
Dust protection
New mechanism prevents more dust than ever, and this helps longer life time of ball bearing

High precision
Minimize shaft vibration which is less than 0.02mm. This enables high precision works.

Hand switch
It is easy to start and stop by Hand switch. It is not necessary to push the button on the controller.

Ergonomic Design
Comfortable grip even for long time work, and silicon ring on the set-ring for slip protection.

Easy tool changing
Simple and easy tool changing. Only turning set ring with a bit of force.

*Adapter(KE50-156) is necessary when connecting to existing controller(UC250,UC500 etc…).
Hand switch will not be effective on this occasion.

UP900 Controller
Input：AC120V 60Hz / AC230V 50Hz
Dimensions：W200mm x D180mm x H110mm
Weight：2.3kg

---

UG43A Motor handpiece
Model ： UG43A
Rotation speed ： 1,000～35,000rpm
Max. Torque ： 5.4N.cm
Weight ： 220g（Not including motor cord）
Dimensions ： φ28×L157mm
Mounted Collet chuck ： Mounted φ2.34mm （KP-036B）
Optional Collet chuck：φ3.0mm （KP-032B）
Optional Collet chuck：φ3.175mm（KP-033B）
Cord length：1.5m

UP900 Accessories
AC cord (AC17-002)
Motor Hanger (MC15-790)
Fuse(UF-2A-1)UG43A Accessories
Carbon brush 2pcs（PKE60-101A）
Motor stand （KP91-109）
Chuck wrench （KP30-101）
Silicone ring （OS10-301)

Optional accessories
Extension cord（3ｍ）（KE50-155） for all the G7 series motor.
Adapter for old controller（KE50-156）
connect G7 series Motor to Old type Controller(UP500)
