Motors

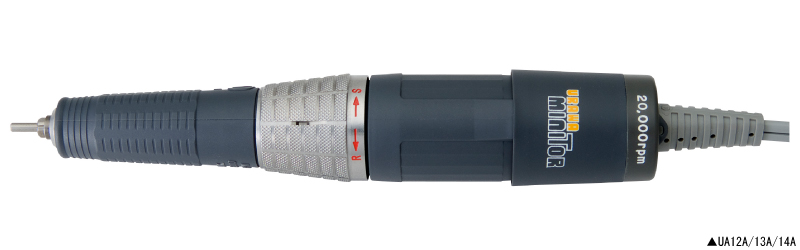

Motor handpiece(One-Piece Type) UA12A,UA13A,UA14A
 |
| Feature ・Compact and light motor handpiece. ・Slim and ergonomic handpiece. ・Vibration free handpiece enables precision works. ・It is possible to use polishing, deburring, engraving, grinding and etc… ・Motor unit incorporates a Self-Cooling fan. ・Easy tool changing system. |
Specification
| UA12A | UA13A | UA14A | |
| Rotation speed | 2000～ 20000rpm |
3500～ 35000rpm |
4500～ 45000rpm |
| Max torque | 6.5N・cm | 5.4N・cm | 4.1N・cm |
| Mounted collet chuck | Φ2.34mm | ||
| Included collet chuck | Φ3.0mm | ||
| Optional collet chuck | Φ3.175mm | ||
| Dimensions | Max Φ27.5mm x 144.5mm | ||
| Accessories Carbon brush Handpiece stand Chuck wrench |
