UG42A High Torque Handpiece ／ UG43A Speed Type Handpiece

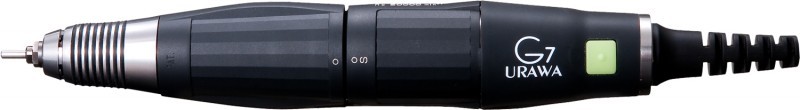

Torque type motor handpiece UG42A

44_ug42a
Max. 20,000rpm. High torque and best performance for polishing.

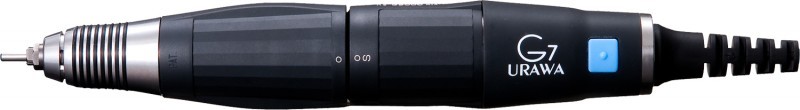

Speed type motor handpiece UG43A

44_ug43a
Max. 35,000ｒｐｍ. Covering low speed to high speed for wide range of operations



Dust protection
New mechanism prevents more dust than ever, and this helps longer life time of ball bearing

High precision
Minimize shaft vibration which is less than 0.02mm. This enables high precision works.

Hand switch
It is easy to start and stop by Hand switch. It is not necessary to push the button on the controller.

Ergonomic Design
Comfortable grip even for long time work, and silicon ring on the set-ring for slip protection.

Easy tool changing
Simple and easy tool changing. Only turning set ring with a bit of force.

*Adapter(KE50-156) is necessary when connecting to existing controller(UC250,UC500 etc…).
Hand switch will not be effective on this occasion.

UG42A Specifications
Model : UG42A
Rotation speed：1,000～20,000rpm
Max Torque ： 6.4N.cm
Weight ： 220g（not including motor cord）
Dimensions ： φ28×L157mm
Mounted Collet chuck ： Mounted φ2.34mm （KP-036B）
Included Collet chuck：φ3.0mm （KP-032B）
Optional Collet chuck：φ3.175mm（KP-033B）
Cord length：1.5m

UG43A Specifications
Model ： UG43A
Rotation speed ： 1,000～35,000rpm
Max. Torque ： 5.4N.cm
Weight ： 220g（Not including motor cord）
Dimensions ： φ28×L157mm
Mounted Collet chuck ： Mounted φ2.34mm
Included Collet chuck：φ3.0mm
Optional Collet chuck：φ3.175mm
Cord length：1.5m

UG42A, UG43A Accessories
Carbon brush 2pcs
Motor stand
Chuck wrench
Silicone ring

Optional accessories
Extension cord(3ｍ) for all the G7 series motor.
Adapter for old controller
