UM05A, UM1XA, UM2XA
UM20A・UM21A・UM23A High power type
Excellent for heavy duty grinding and polishing.
UM12A・UM13A・UM14A Standard type
Well designed Motor Handpiece with the excellent balance of speed and power.
Useful for versatile application.

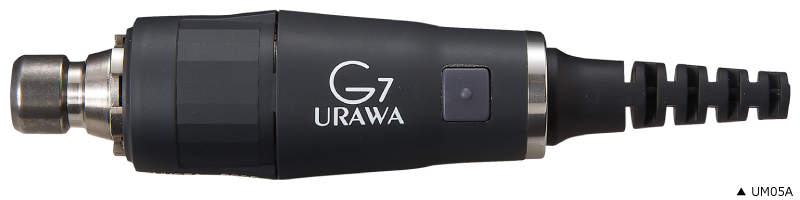

UM05A High speed type
Excellent for precision work.
Compact and light weight.
Hand switch
It is easy to start and stop by Hand switch. It is not necessary to push the button on controller.
Simple and easy rotary head changing.
Easy coupling type head rotary head changing.
Head and Motor compatibility table
| UM20A | UM21A | UM23A | UM12A | UM13A | UM14A | UM05A | |
| UT01 | Ο | Ο | Ο | Ο | Ο | ||
| UT02 | Ο | Ο | Ο | Ο | Ο | Ο | Ο |
| UT03 | Ο | Ο | Ο | Ο | Ο | ||
| UT05 | Ο | Ο | Δ | Δ | |||
| UT06 | Ο | Ο | Δ | Δ | |||
| UT07 | Ο | Ο | Δ | Δ | |||
| UT08 | Ο | Δ | Δ | Δ | |||
| UT11 | Ο | Ο | Ο | Ο | Ο | Ο | Ο |
| UT12 | Ο | Ο | Ο | Ο | Ο |
Ο：Adaptable
| Model | Rotation Speed | Max. torque (N・ｃｍ) |
Weight (g) |
Cord length (m) |
Dimension（mm） | ||
| Head connecting part | Body | Max diameter | |||||
| UM20A | 1,000～8,000 | 9.8 | 176 | 1.5 | 19 | 89.3 | 31.6 |
| UM21A | 1,000～15,000 | 8.8 | |||||
| UM23A | 1,000～30,000 | 6.8 | |||||
| UM12A | 1,000～20,000 | 6.4 | 120 | 77 | 27.5 | ||
| UM13A | 1,000～35,000 | 5.4 | |||||
| UM14A | 2,000～45,000 | 5.0 | |||||
| UM05A | 2,000～55,000 | 3.6 | 90 | 66.5 | |||
UM20A, UM23A, UM23A Accessories
Carbon brush
Handpiece stand
UM12A, UM13A, UM14A Accessories
Carbon brush 2pcs
Handpiece stand
UM05A Accessories
Carbon brush 2pcs
Handpiece stand
Optional accessories
Extension cord (3ｍ)
For all the G7 series.
Adapter for old controller
